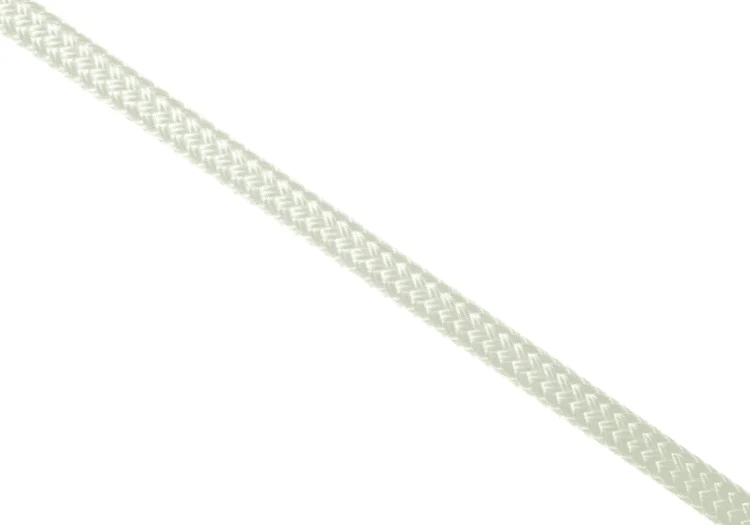

Polyester Braid Super Braidline
Braided in 16 Plait construction in high strength polyester which is pre stretched for improved performance. These cords are made for halyards and control lines and where high strength, low stretch and superb durability are essential.
Standard colour: White.
Need Advice? Call us now on:
+44 (0)1706 360 363
Technical Overview
Load to give extension of:
| REF. | DIA. (MM) | REEL LENGTHS (M) | NOMINAL BREAK LOAD (KGS) |
|---|---|---|---|
| 30/06 | 6.0 | 100 or 500 | 800 |
| 30/08 | 8.0 | 100 or 500 | 1500 |
| 30/10 | 10.0 | 100 or 500 | 2200 |
| 30/12 | 12.0 | 100 or 500 | 3800 |
| 30/14 | 14.0 | 100 or 500 | 4600 |
All Diameters Must Be +/- 5% Of The Nominal For British Standard
