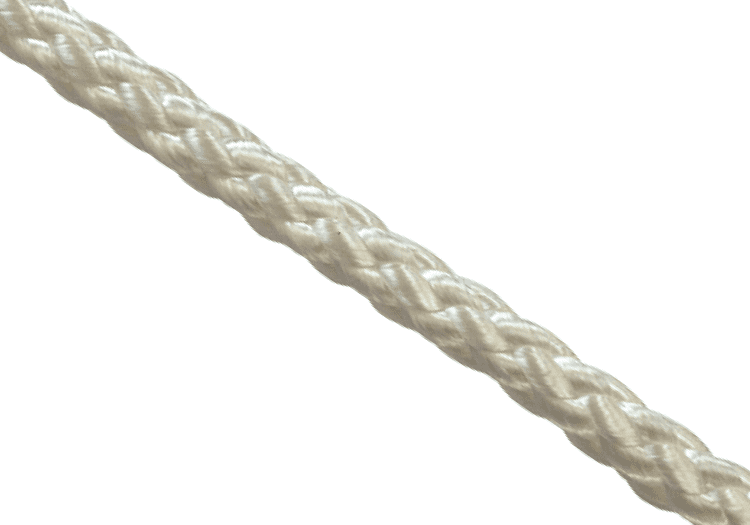

Polyester Braid 8-Plait Standard
High strength polyester braided cords in cross braided 8 plait construction for picture cords, blind cords and industrial applications.
Need Advice? Call us now on:
+44 (0)1706 360 363
Technical Overview
Load to give extension of:
| REF. | DIA.(MM) | REEL LENGTH (M) | NOMINAL BREAK LOAD (KG) |
|---|---|---|---|
| 230/008 | 0.8 | 1000 | 16 |
| 230/01 | 1.0 | 1000 | 30 |
| 230/015 | 1.5 | 500 | 50 |
| 230/018 | 1.8 | 500 | 80 |
| 230/02 | 2.0 | 200 | 100 |
| 230/022 | 2.2 | 200 | 110 |
| 230/025 | 2.5 | 200 | 120 |
| 230/027 | 2.7 | 200 | 160 |
| 230/03 | 3.0 | 200 | 250 |
| 230/035 | 3.5 | 200 | 350 |
| 230/04 | 4.0 | 100 | 370 |
| 230/05 | 5.0 | 100 | 400 |
| 230/06 | 6.0 | 100 | 590 |
All Diameters Must Be +/- 5% Of The Nominal For British Standard
